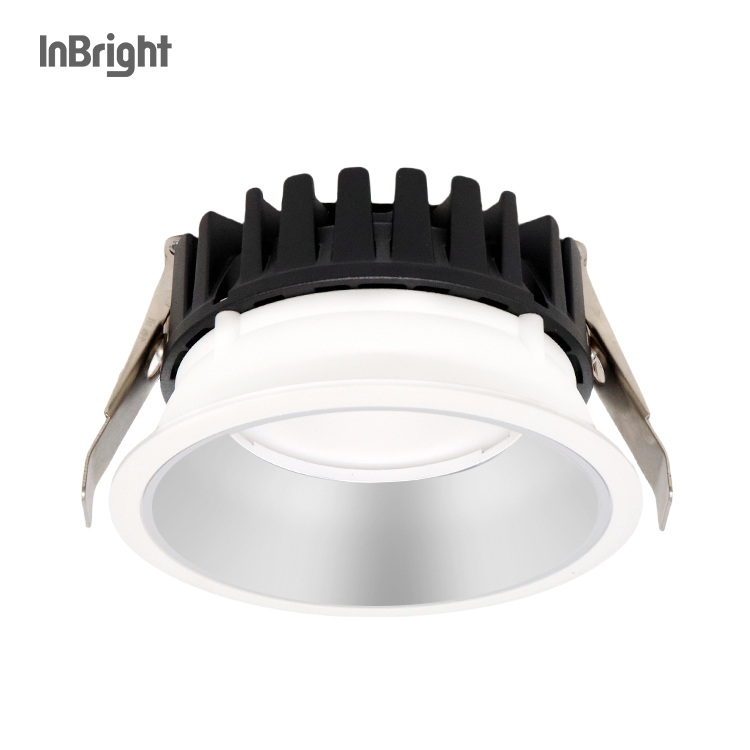

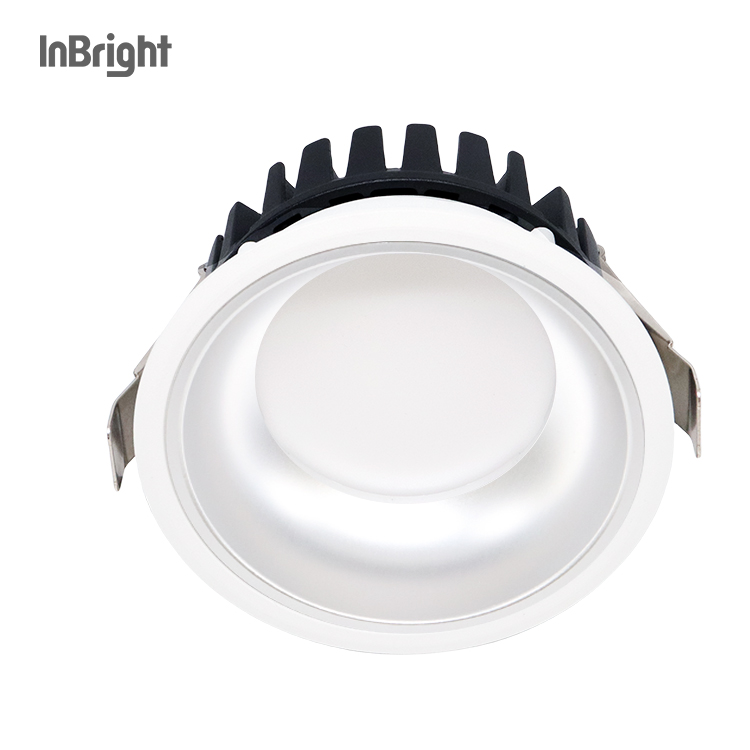

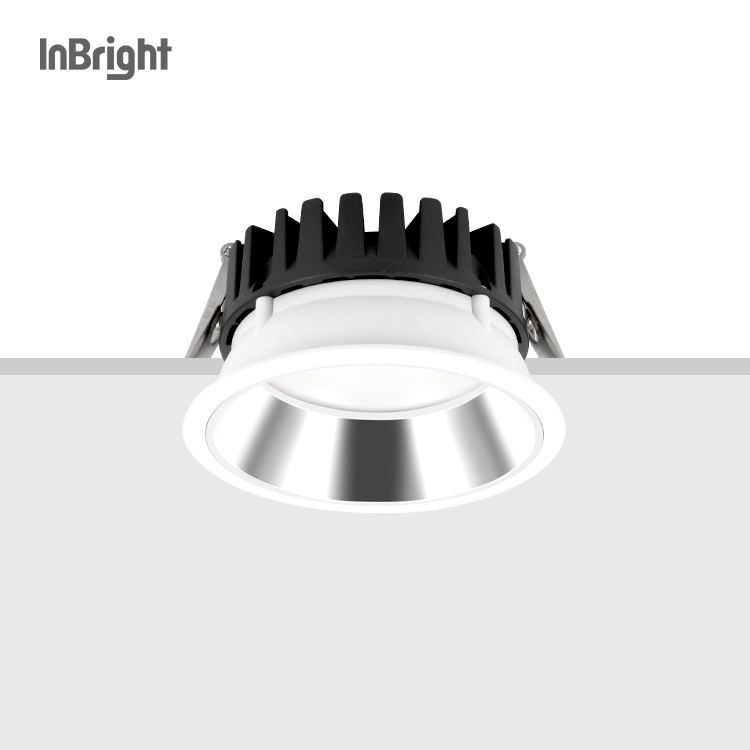

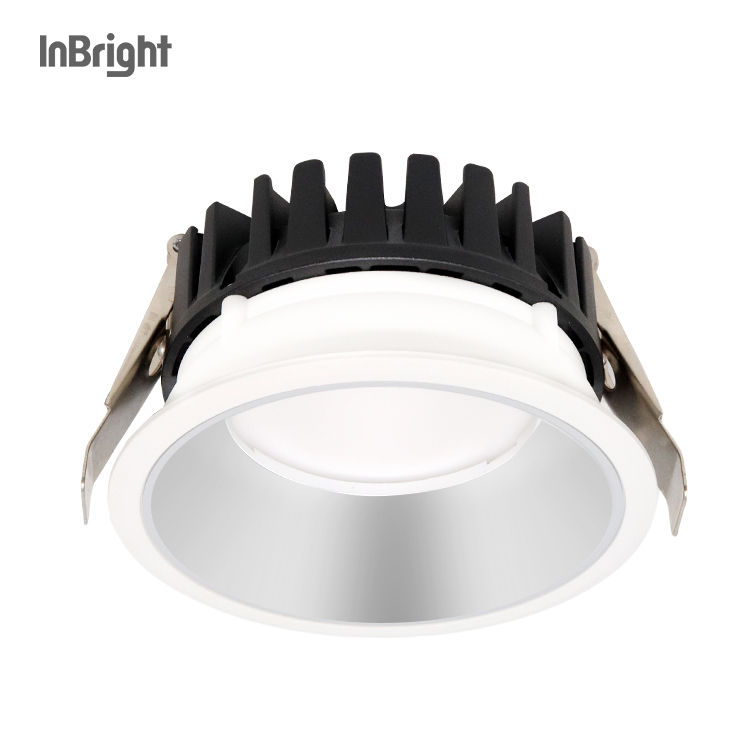

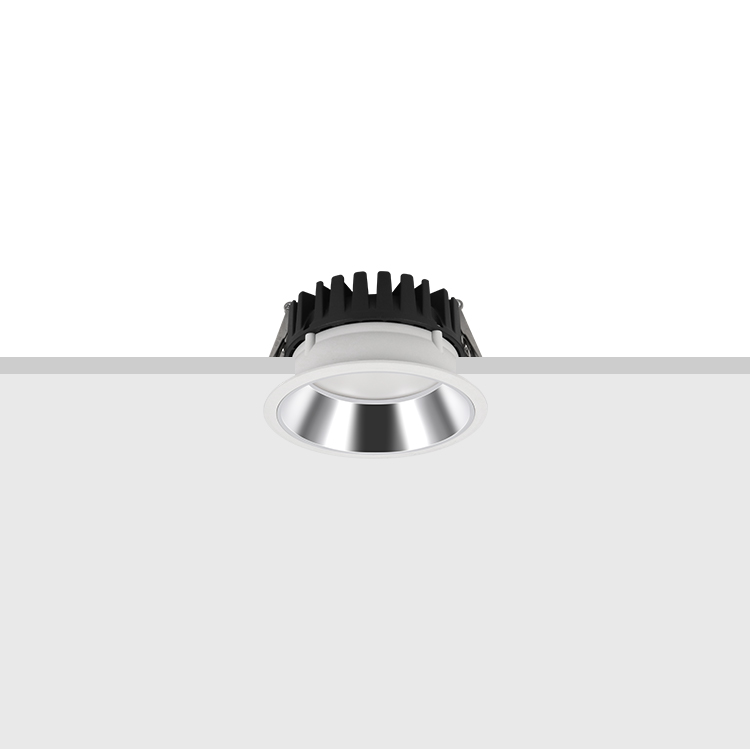

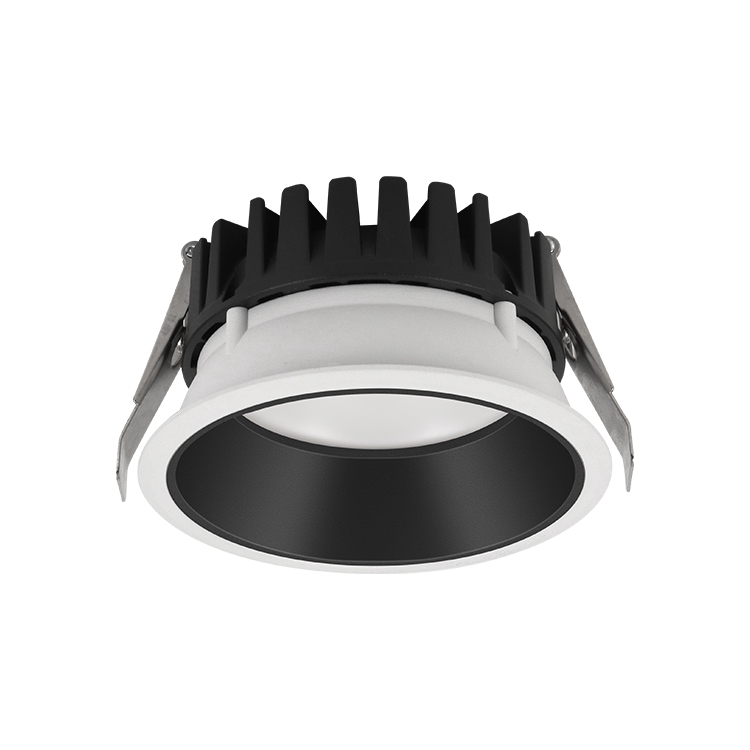

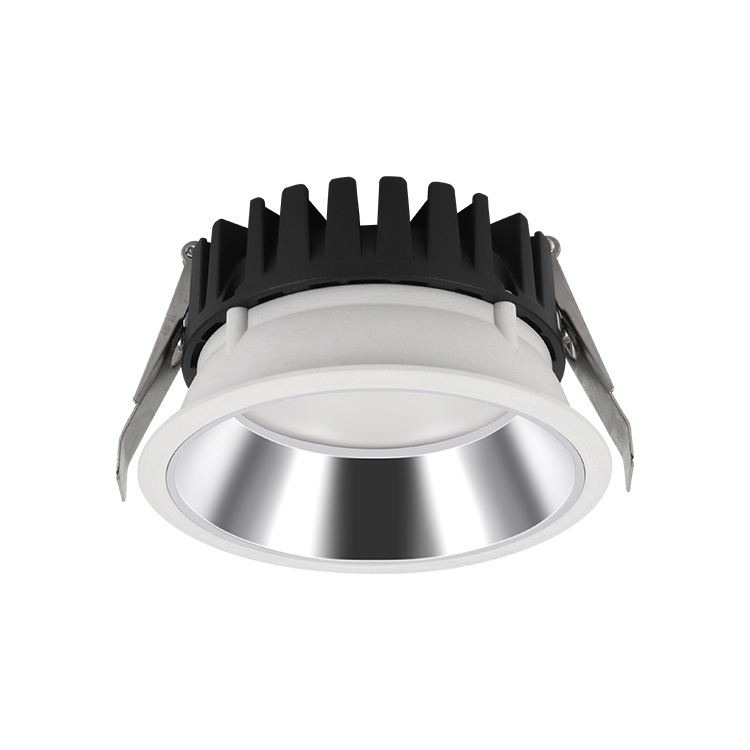

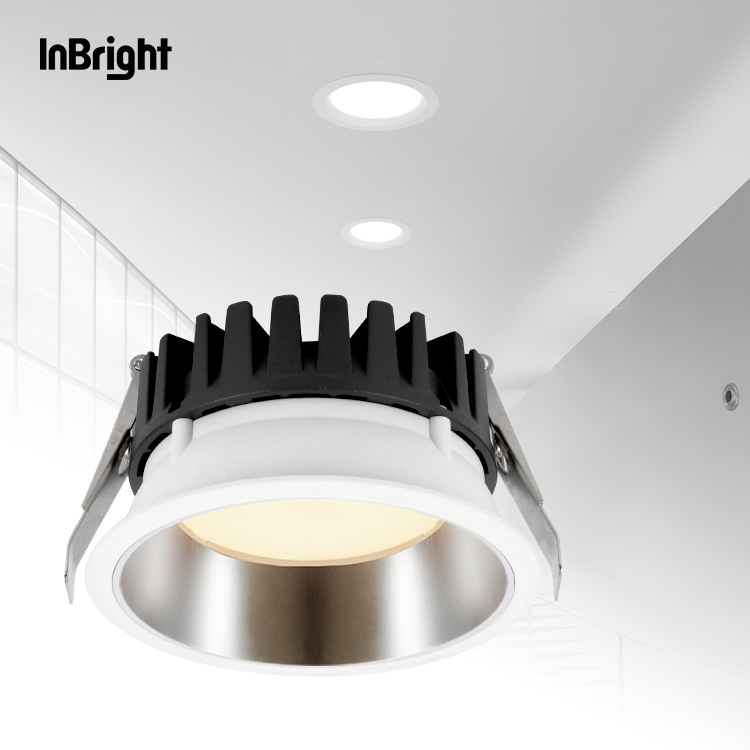

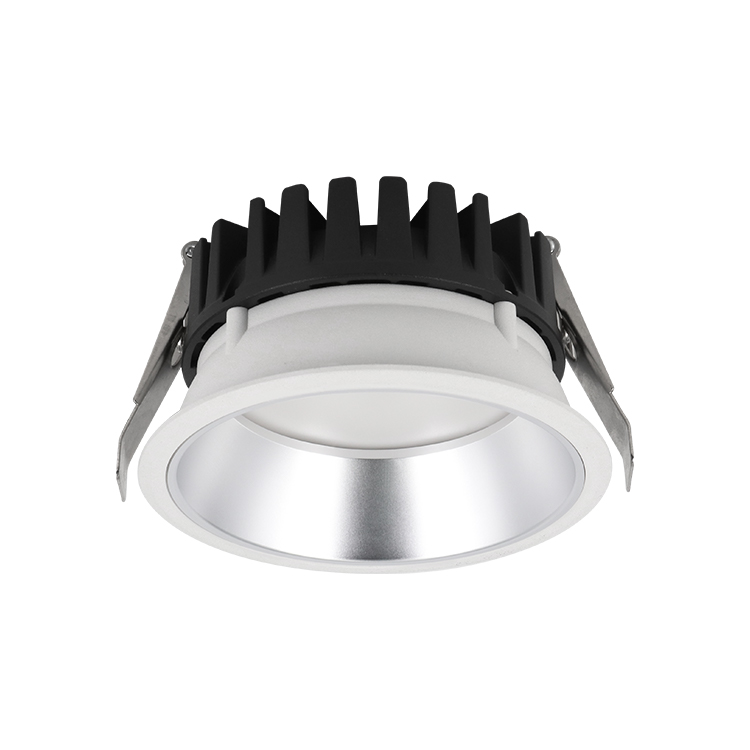

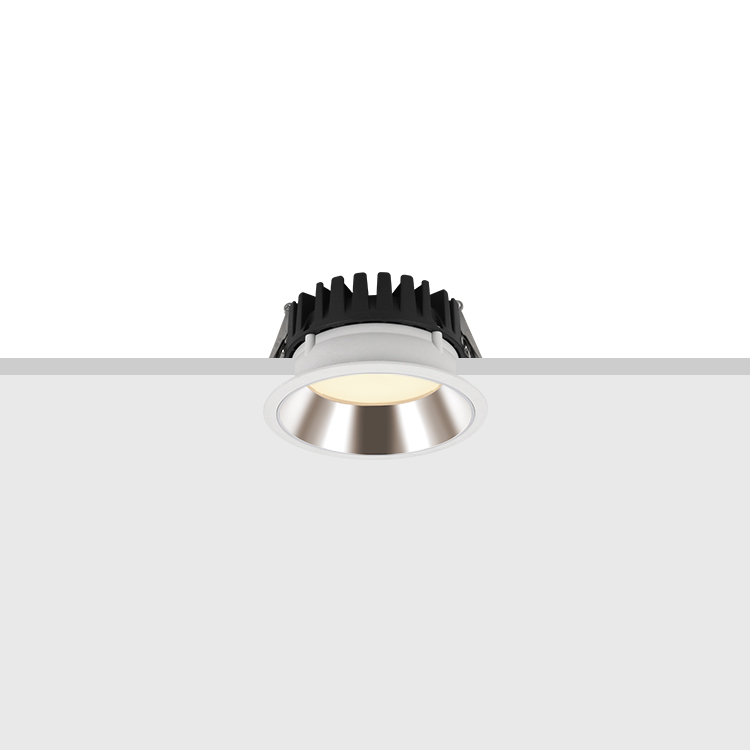

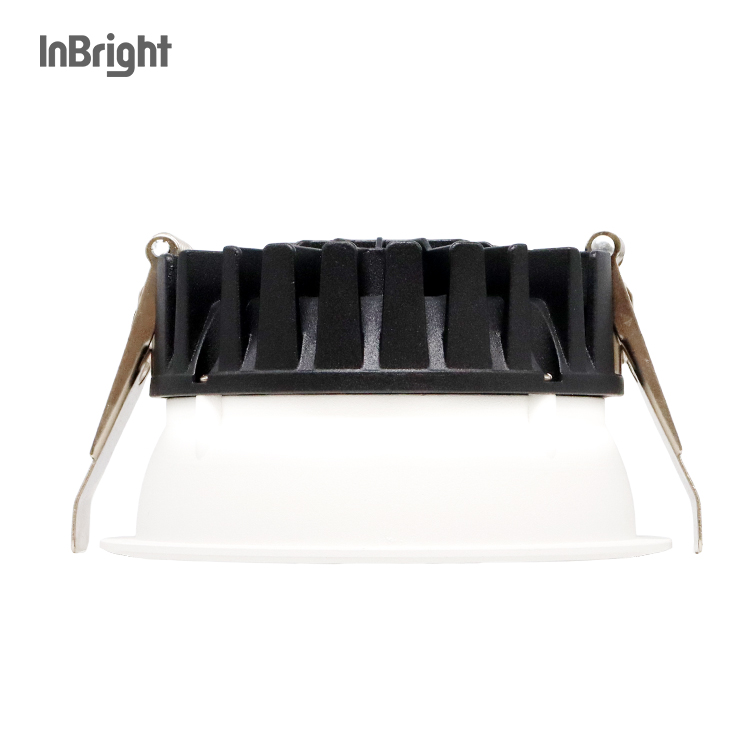

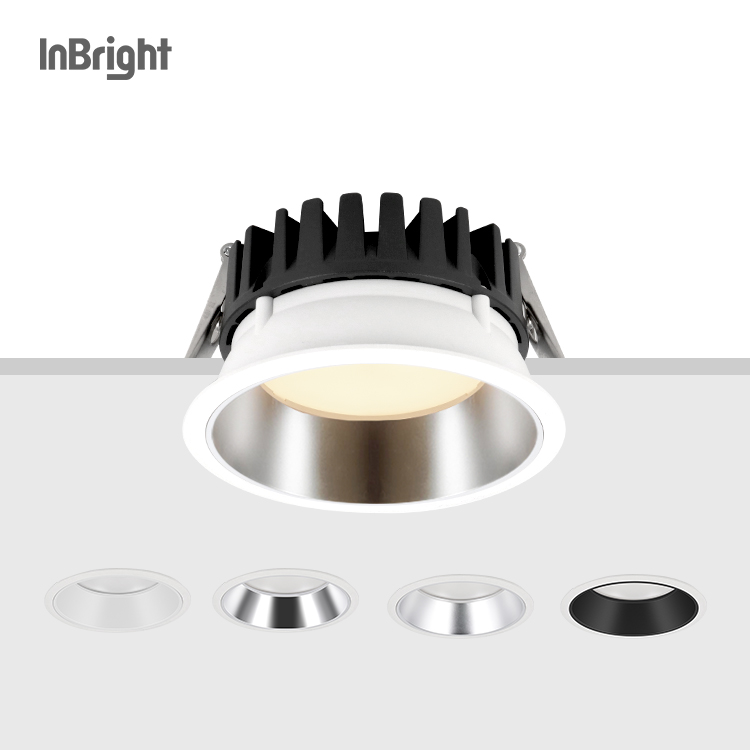

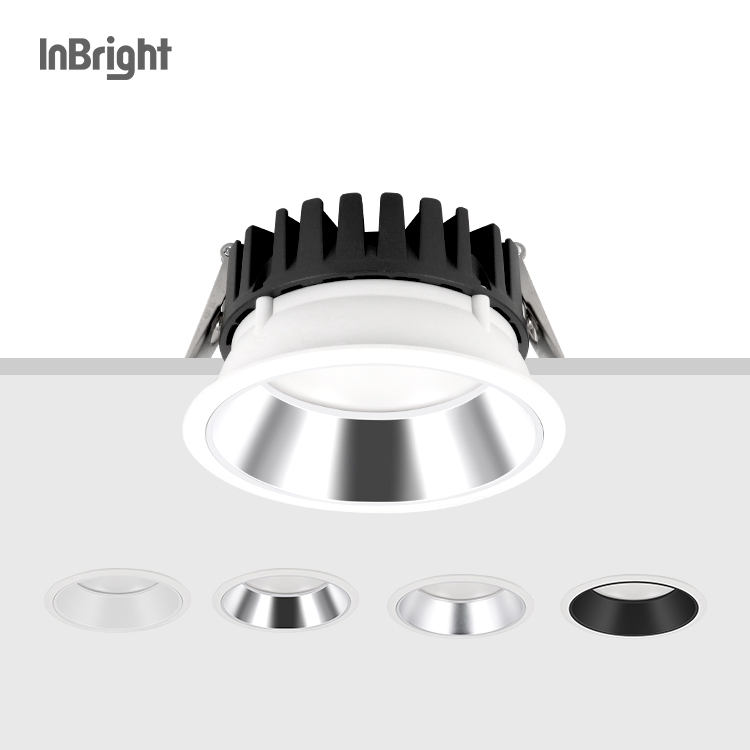

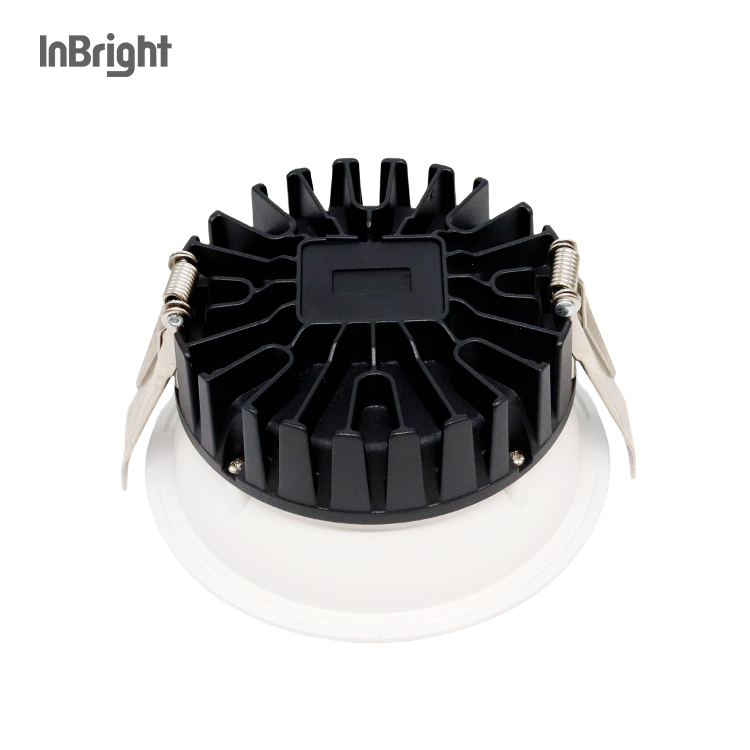

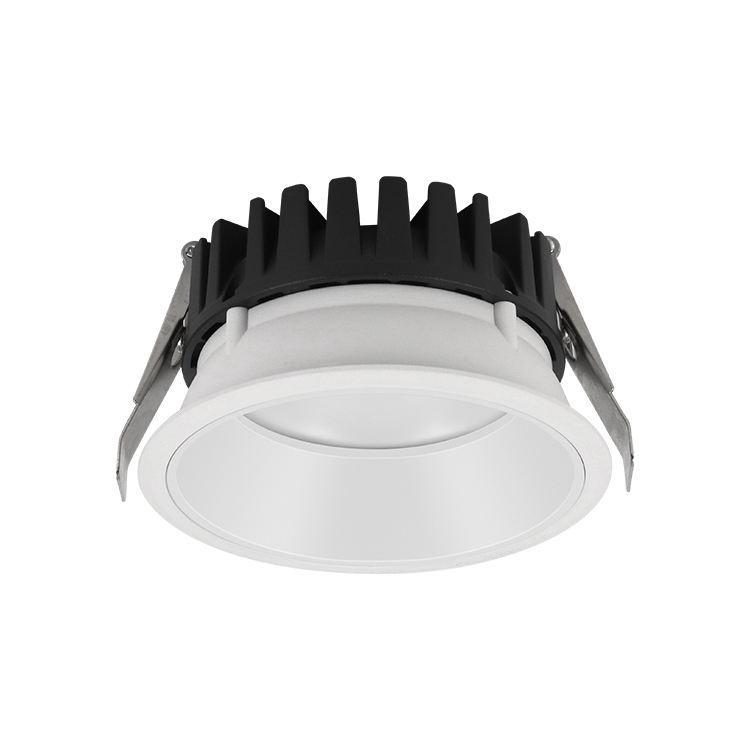

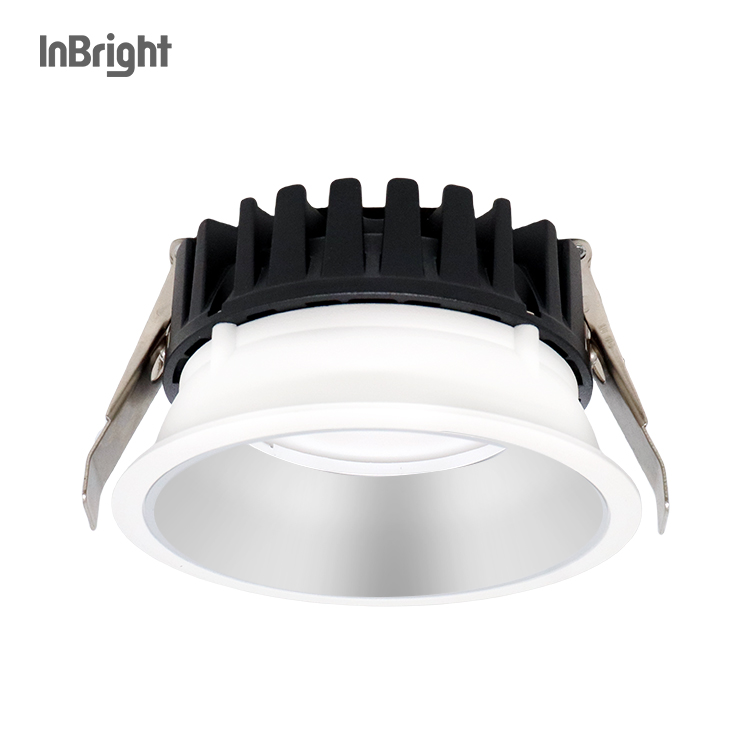

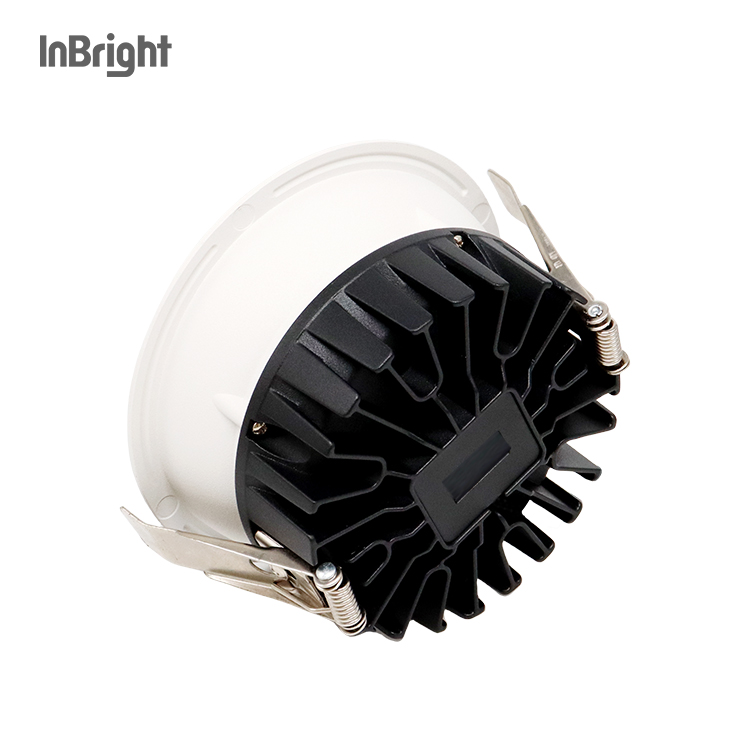

20W,Cutout 115-120mm,Beam 85°,110lm/W,UGR<19,IP20/IP54,Pure Aluminum Reflector,Optional CCT Switch,Deep Trim Recessed LED Downlight

Model No

IBDL226CT115

Diemnsion

Φ129*H69mm

Cutout

115×120mm

Application

Lobby & Reception

Restaurant

Conference Room & Office

Corridor & Hallway

Shop

Power

20W

Beam Angle

85°

Color Temp

2700K3000K3500K4000K5000K5700K6500K

CRI

Ra.80Ra.90Ra.98

Power Factor

PF>0.5PF>0.9

Working Voltage

AC200-240VAC100-277V

IP Grade

IP20IP54

Dimming Function

ON/OFFTriac Dimming0-10V DimmingDALI Dimming

LED Chip Optional

CREEBridgeluxHongliPhilipsOsram

LED Driver Optional

EagelriseLifudOsram

Installation

Recessed Mount

Quantity:	- +

Add To Cart Inquiry

Description

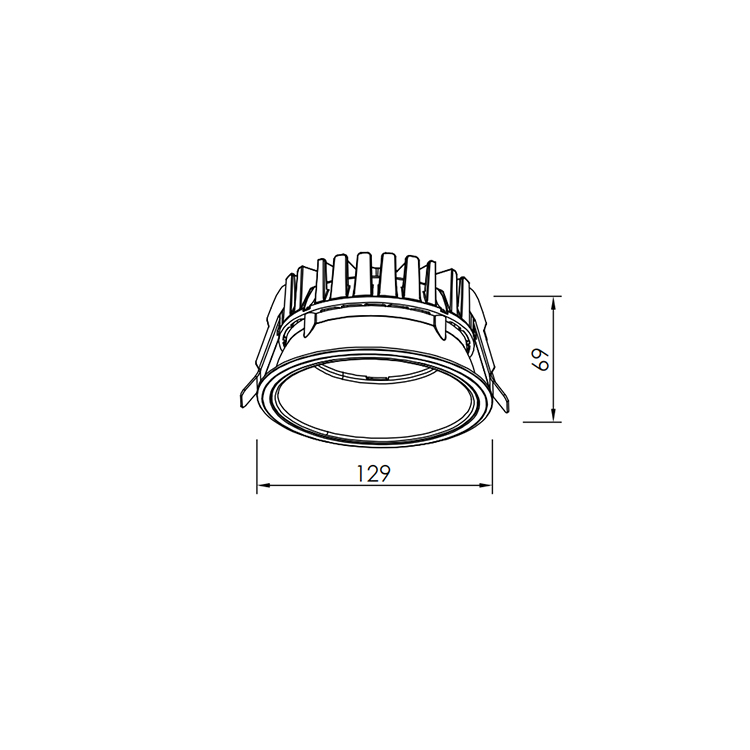

Line Art
Datasheet
IES

Model No.	Watts	Lamp Outer Size	Cutout Hole Size	Beam Angle
IBDL226CT090	15W	Ø104*H69mm	Ø90-95mm	85° Fixed
IBDL226CT115	20W	Ø129*H69mm	Ø115-120mm
IBDL226CT140	25W	Ø155*H74mm	Ø140-145mm
IBDL226CT175	35W	Ø190*H74mm	Ø170-178mm
IBDL226CT200	42W	Ø220*H84mm	Ø200-208mm

IBDL226 Datasheet.pdf

LED Down Light Instruction-IBDL226.pdf

IBDL226CT115-20W-40K-同一方 -柏科+亮银杯 20W.pdf
