Click To Enlarge

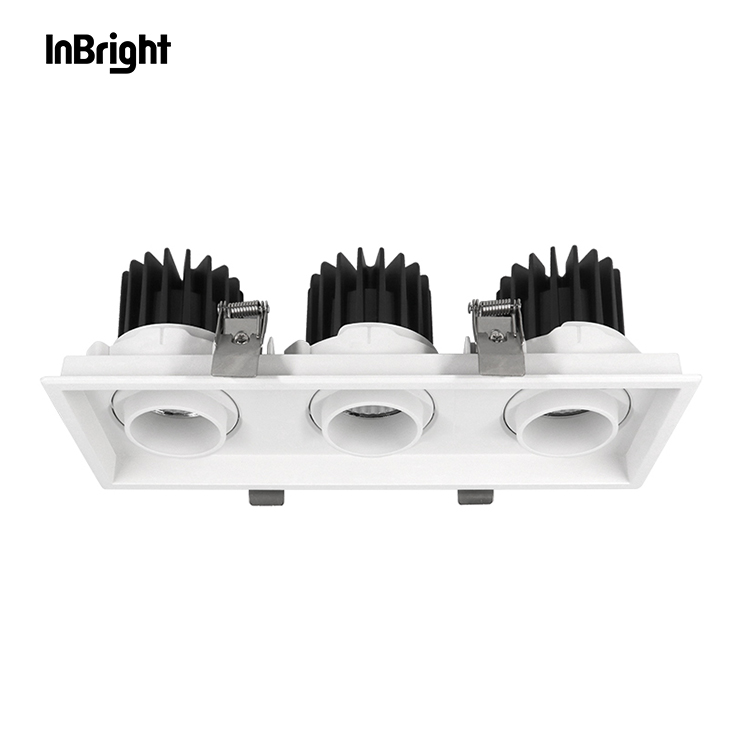

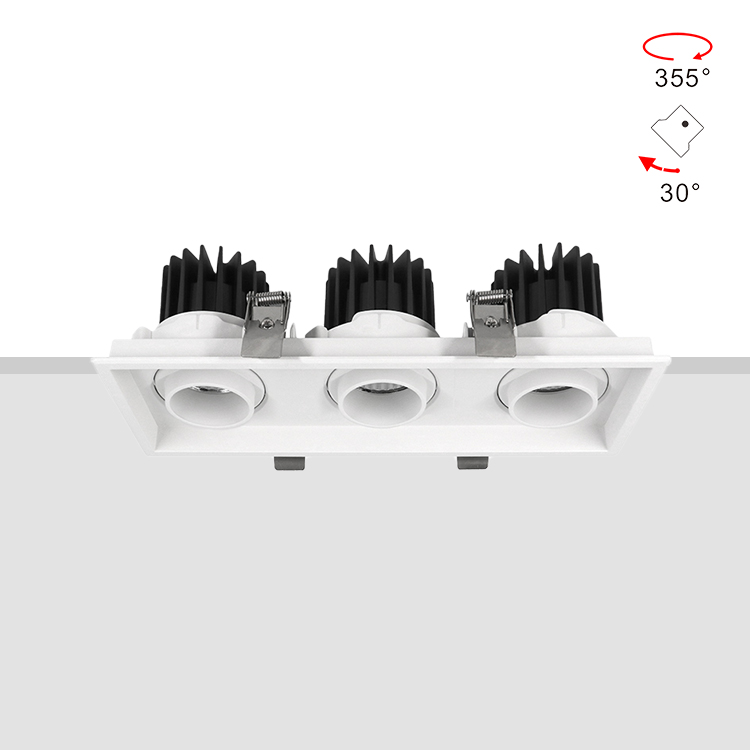

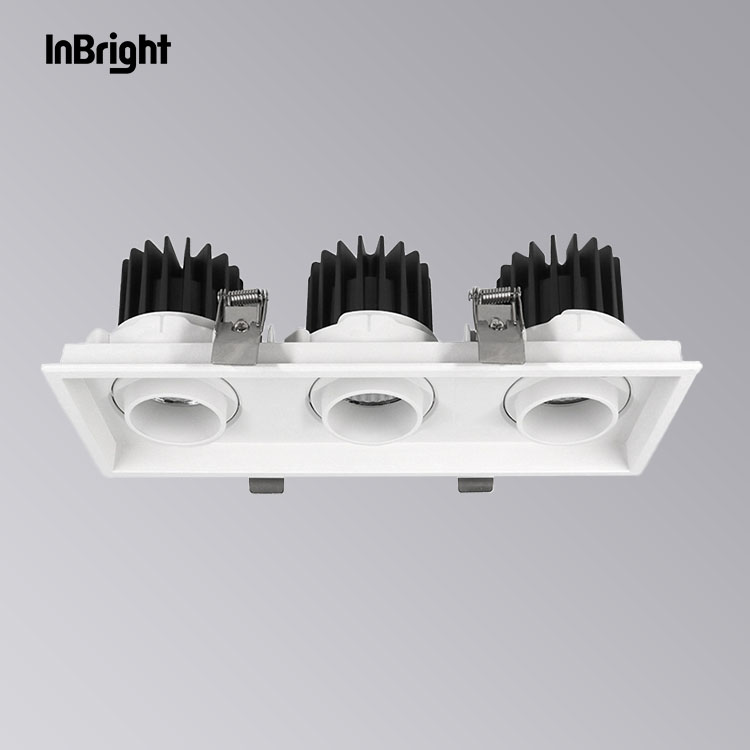

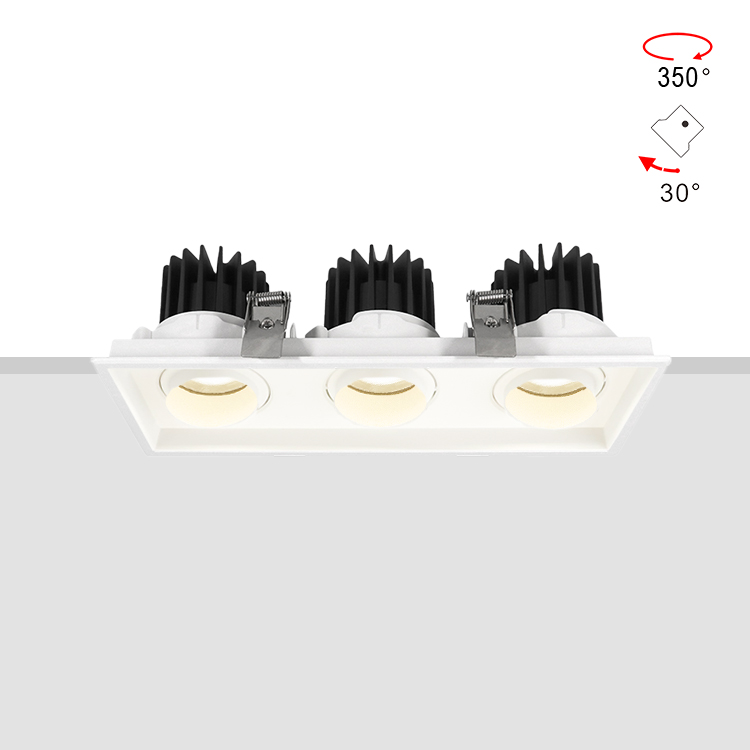

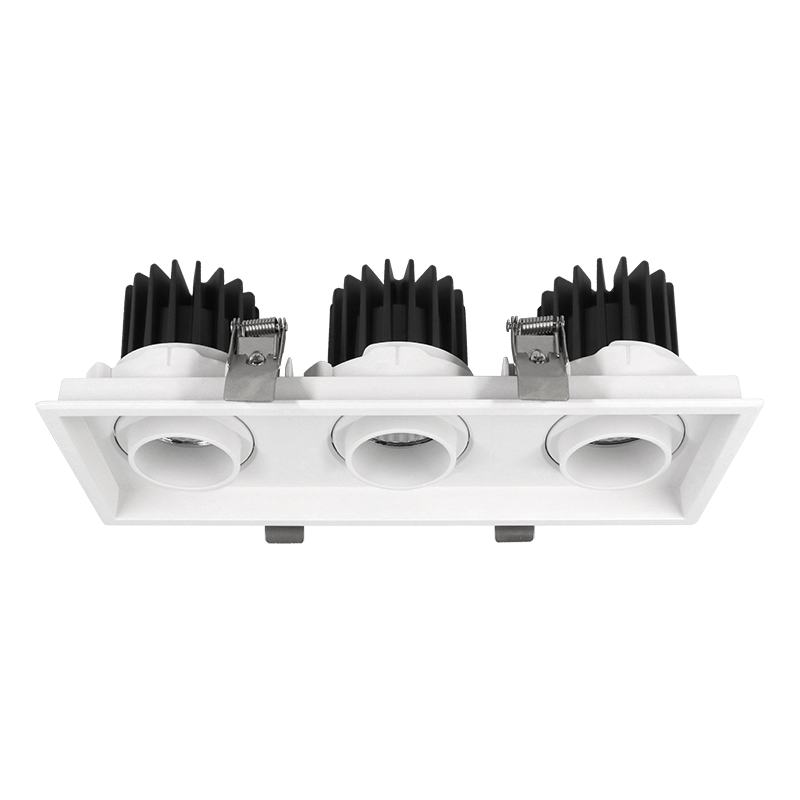

3*15W,Cutout L285×W95mm,Beam15°| 24°|38°|45°|60°,Horizontal 355° + Vertical 30°,IP65,Honeycomb louver Optional,Twin-head Adjustable LED Downlight

Model No

IBSP104SCT095H98-3F-EB

Diemnsion

L296×W106xH98mm

Cutout

285×95mm

Application

Guestroom & Suite

Lobby & Reception

Restaurant

Conference Room & Office

Corridor & Hallway

Bathroom & SPA

Shop

Power

3*15W

Beam Angle

15°24°38°45°

Color Temp

2700K3000K3500K4000K5000K5700K6500K

CRI

Ra.80Ra.90Ra.98

Power Factor

PF>0.5PF>0.9

Working Voltage

AC200-240VAC100-277V

IP Grade

IP65

Dimming Function

ON/OFFTriac Dimming0-10V DimmingDALI Dimming

LED Chip Optional

CREEBridgeluxHongliPhilipsOsram

LED Driver Optional

EagelriseLifudOsram

Installation

Recessed Mount

Quantity:	- +

Add To Cart Inquiry

Description

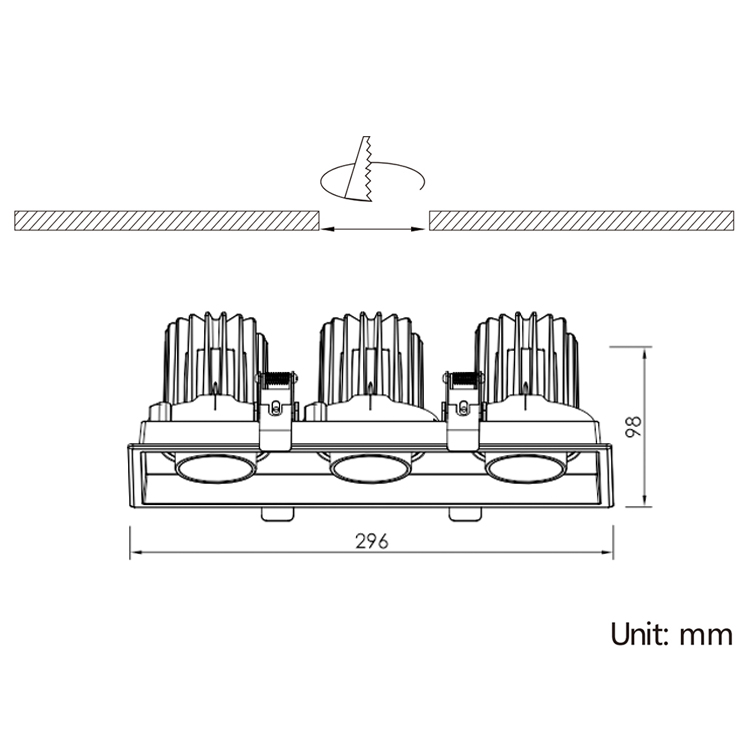

Line Art
Datasheet
IES

Model No.	Watts	Lamp Outer Size	Cutout Hole Size	Discription
IBSP104SCT095H78-3F-EB	3x10W	L296×W106xH78mm	L285×W95mm	Reflector 15°\| 24°\|38°\|45° (horizontal 355°+vertical 30°)
IBSP104SCT095H98-3F-EB	3x15W	L296×W106xH98mm	L285×W95mm	Reflector 15°\| 24°\|38°\|45° Lens15°\| 24°\|38° (horizontal 355°+vertical 30°)
IBSP104SCT095H124-3F-EB	3x25W	L296×W106xH124mm	L285×W95mm	Reflector 15°\| 24°\|38°\|45° (horizontal 355°+vertical 30°)

Model No.

Watts

Lamp Outer Size

Cutout Hole Size

Discription

IBSP104SCT095H78-3F-EB

3x10W

L296×W106xH78mm

L285×W95mm

Reflector 15°| 24°|38°|45°

(horizontal 355°+vertical 30°)

IBSP104SCT095H98-3F-EB
